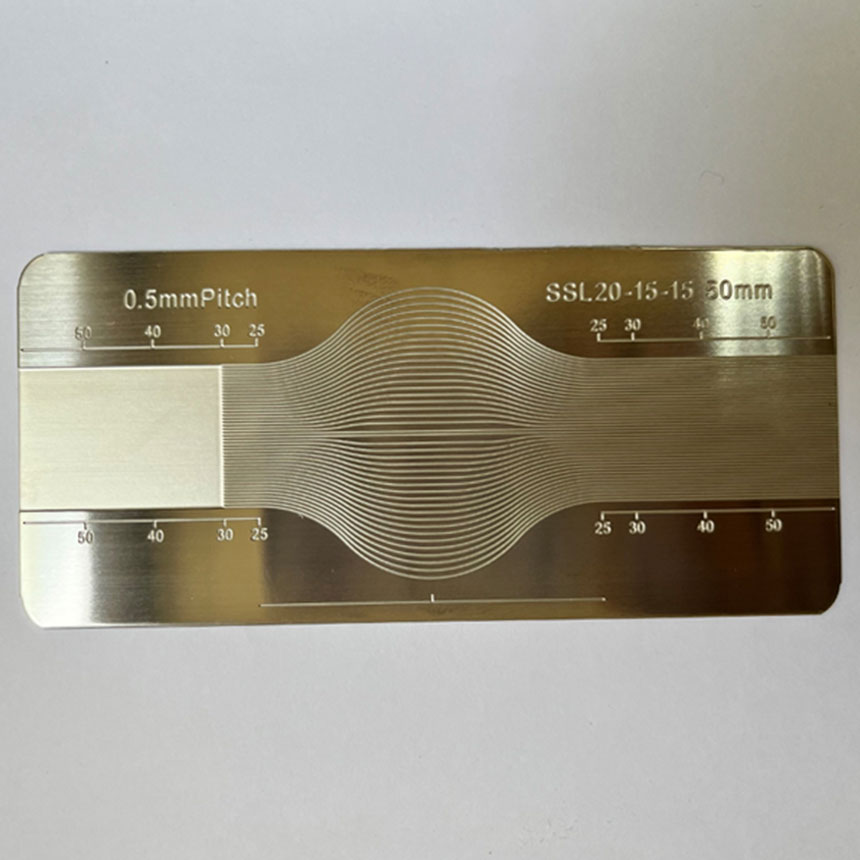

Jigs / Fixture Plate

Core Manufacturing Capabilities Overview Material: Stainless Steel, Brass, Copper, White Copper, Phosphor Bronze, Beryllium Copper, Pure Nickel SheetThickness: 0.1–1 mm (through-etch type) / up to 3 mm (half-etch type)Material Size: Within 300×400 mm or 300×500 mm for optimal precisionHole Shapes: Round, Square, Hexagonal, Gradient… (customizable)Hole Diameter: Larger than material thickness (see tolerance chart)Dimensional Tolerance: min ±0.03 mm (larger thickness = wider tolerance) Half-Etch Depth Tolerance: ±0.02–0.03 mmHalf-Etch Area Dimensional Tolerance: Increases with etching depth Production Capacity: 500,000 pcs/month — fast prototyping and mass production availableLead Time: ≤ 1,000 pcs: 10 days ≤ 5,000 pcs: 14 days 5,000 pcs: To be discussed
